Kubernetes (K8s) is an open-source container orchestration platform that automates the deployment, scaling and management of containerized applications. It was originally developed by Google and is now maintained by the Cloud Native Computing Foundation (CNCF). Kubernetes provides a robust framework for running distributed systems resiliently, with features such as service discovery, load balancing, storage orchestration, automated rollouts and rollbacks, self-healing and secret and configuration management.

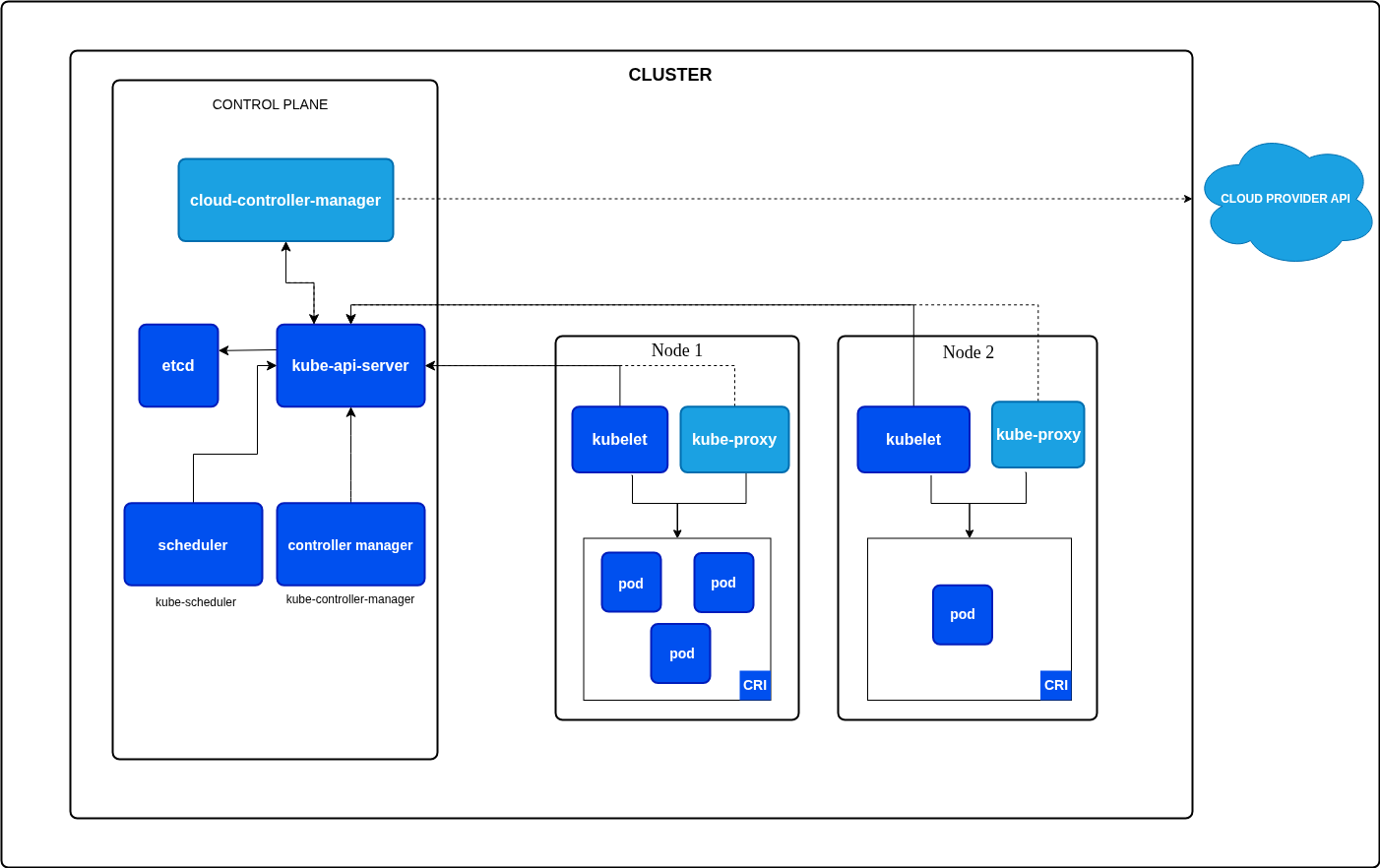

Architecture
A Kubernetes cluster is composed of two main types of nodes:
1. Control Plane Nodes
Control plane nodes are responsible for managing the overall state of the cluster. They make global decisions about the cluster (such as scheduling), maintain cluster state and handle cluster events. Key components running on control plane nodes include:
- kube-apiserver: Serves the Kubernetes API and is the entry point for all administrative tasks.
- etcd: A distributed key-value store that holds all cluster data.
- kube-scheduler: Assigns workloads (pods) to worker nodes based on resource availability and policies.
- kube-controller-manager: Runs controllers that handle routine tasks (e.g., node management, replication).
- cloud-controller-manager: Integrates with cloud provider APIs (if applicable).
2. Worker Nodes
Worker nodes (sometimes called minions) are where the actual application workloads run. Each worker node contains the necessary services to run containers and communicate with the control plane. Key components include:
- kubelet: An agent that ensures containers are running in a Pod as expected. It is the component actually responsible for starting containers on the node, as instructed by the control plane after the scheduler assigns a Pod to this node.
- kube-proxy: Handles network routing and load balancing for services.
- Container runtime: Software responsible for running containers (e.g., containerd, Docker).
Node Summary
- Control Plane Nodes: Manage the cluster, maintain desired state and orchestrate workloads.
- Worker Nodes: Run application containers and report status to the control plane.
Both node types are essential for a functioning Kubernetes cluster. In production, control plane and worker nodes are often separated for security and scalability.
Core Concepts
Pods
A Pod is the smallest deployable unit in Kubernetes. It represents a single instance of a running process and can contain one or more containers that share network and storage resources.
Key Characteristics:
- Pods share the same network namespace (same IP address and port space)
- Containers within a Pod can communicate via localhost
- Pods are ephemeral and can be replaced at any time
- Each Pod gets a unique IP address
Example: Simple Pod
apiVersion: v1
kind: Pod
metadata:
name: simple-pod
labels:
app: myapp
environment: production
spec:
containers:
- name: nginx
image: nginx:1.21
ports:
- containerPort: 80
resources:
requests:
memory: "64Mi"
cpu: "250m"
limits:
memory: "128Mi"
cpu: "500m"
ReplicaSets
ReplicaSets ensure that a specified number of Pod replicas are running at any given time. They provide high availability and scalability.
apiVersion: apps/v1
kind: ReplicaSet
metadata:
name: frontend-replicaset
spec:
replicas: 3
selector:
matchLabels:
app: frontend
template:
metadata:
labels:
app: frontend
spec:
containers:
- name: nginx
image: nginx:1.21
ports:
- containerPort: 80
Deployments
Deployments provide declarative updates for Pods and ReplicaSets. They are the recommended way to manage stateless applications in Kubernetes.
Features:
- Rolling updates and rollbacks
- Scaling up and down
- Pause and resume deployments
- Version history
apiVersion: apps/v1
kind: Deployment
metadata:
name: web-deployment
labels:
app: web
spec:
replicas: 3
strategy:
type: RollingUpdate
rollingUpdate:
maxSurge: 1
maxUnavailable: 1
selector:
matchLabels:
app: web
template:
metadata:
labels:
app: web
version: v1
spec:
containers:
- name: nginx
image: nginx:1.21
ports:
- containerPort: 80
livenessProbe:
httpGet:
path: /healthz
port: 80
initialDelaySeconds: 30
periodSeconds: 10
readinessProbe:
httpGet:
path: /ready
port: 80
initialDelaySeconds: 5
periodSeconds: 5
resources:
requests:
memory: "128Mi"
cpu: "250m"
limits:
memory: "256Mi"
cpu: "500m"
StatefulSets
StatefulSets manage stateful applications with stable network identities and persistent storage. Use them for databases, message queues, or any application requiring stable identifiers.
Features:
- Stable, unique network identifiers
- Stable, persistent storage
- Ordered, graceful deployment and scaling
- Ordered, automated rolling updates
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: mongodb
spec:
serviceName: mongodb-service
replicas: 3
selector:
matchLabels:
app: mongodb
template:
metadata:
labels:
app: mongodb
spec:
containers:
- name: mongodb
image: mongo:5.0
ports:
- containerPort: 27017
volumeMounts:
- name: data
mountPath: /data/db
volumeClaimTemplates:
- metadata:
name: data
spec:
accessModes: ["ReadWriteOnce"]
resources:
requests:
storage: 10Gi
DaemonSets
DaemonSets ensure that a copy of a Pod runs on all (or selected) nodes. Useful for node-level operations like log collection, monitoring, or network management.
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: fluentd
labels:
app: fluentd
spec:
selector:
matchLabels:
app: fluentd
template:
metadata:
labels:
app: fluentd
spec:
containers:
- name: fluentd
image: fluent/fluentd:latest
volumeMounts:
- name: varlog
mountPath: /var/log
- name: varlibdockercontainers
mountPath: /var/lib/docker/containers
readOnly: true
volumes:
- name: varlog
hostPath:
path: /var/log
- name: varlibdockercontainers
hostPath:
path: /var/lib/docker/containers
Services
Services provide stable network endpoints for accessing Pods. They enable load balancing and service discovery.
Service Types:
- ClusterIP (default): Internal cluster IP, accessible only within cluster
- NodePort: Exposes service on each node’s IP at a static port
- LoadBalancer: Creates external load balancer (cloud provider)
- ExternalName: Maps service to external DNS name
apiVersion: v1
kind: Service
metadata:
name: web-service
spec:
type: LoadBalancer
selector:
app: web
ports:
- protocol: TCP
port: 80
targetPort: 80
sessionAffinity: ClientIP
---
apiVersion: v1
kind: Service
metadata:
name: database-service
spec:
type: ClusterIP
selector:
app: mongodb
ports:
- protocol: TCP
port: 27017
targetPort: 27017
clusterIP: None # Headless service for StatefulSet
Ingress
Ingress manages external access to services, typically HTTP/HTTPS. It provides load balancing, SSL termination, and name-based virtual hosting.
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: web-ingress
annotations:
nginx.ingress.kubernetes.io/rewrite-target: /
cert-manager.io/cluster-issuer: letsencrypt-prod
spec:
ingressClassName: nginx
tls:
- hosts:
- example.com
secretName: example-tls
rules:
- host: example.com
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: web-service
port:
number: 80
- path: /api
pathType: Prefix
backend:
service:
name: api-service
port:
number: 8080
ConfigMaps and Secrets
ConfigMaps store non-sensitive configuration data, while Secrets store sensitive information.
apiVersion: v1
kind: ConfigMap
metadata:
name: app-config
data:
database_host: "mongodb-service"
log_level: "info"
config.yaml: |
server:
port: 8080
timeout: 30
---
apiVersion: v1
kind: Secret
metadata:
name: app-secrets
type: Opaque
data:
database_password: cGFzc3dvcmQxMjM= # base64 encoded
api_key: YXBpa2V5MTIzNDU2Nzg=
Using ConfigMaps and Secrets:
apiVersion: v1
kind: Pod
metadata:
name: app-pod
spec:
containers:
- name: app
image: myapp:latest
env:
- name: DATABASE_HOST
valueFrom:
configMapKeyRef:
name: app-config
key: database_host
- name: DATABASE_PASSWORD
valueFrom:
secretKeyRef:
name: app-secrets
key: database_password
volumeMounts:
- name: config-volume
mountPath: /etc/config
- name: secret-volume
mountPath: /etc/secrets
readOnly: true
volumes:
- name: config-volume
configMap:
name: app-config
- name: secret-volume
secret:
secretName: app-secrets
Init Containers in Kubernetes
Init containers are specialized containers that run before app containers in a Pod. They are commonly used to perform setup tasks, such as initializing data, waiting for a service to be available, or setting up configuration files. Init containers must complete successfully before the main application containers start. If an init container fails, Kubernetes restarts the Pod until the init container succeeds.
Example: Pod Descriptor with Init Container and Nginx
Below is an example of a Pod manifest that uses an init container to perform a simple setup before starting the main Nginx container:
apiVersion: v1
kind: Pod
metadata:
name: nginx-with-init
spec:
initContainers:
- name: init-myservice
image: busybox
command: ["sh", "-c", "echo Initializing... && sleep 5"]
containers:
- name: nginx
image: nginx:latest
ports:
- containerPort: 80
Advanced Init Container Example
apiVersion: v1
kind: Pod
metadata:
name: advanced-init
spec:
initContainers:
- name: wait-for-db
image: busybox:1.35
command:
[
"sh",
"-c",
"until nslookup mongodb-service; do echo waiting for db; sleep 2; done",
]
- name: db-migration
image: myapp-migrations:latest
env:
- name: DATABASE_URL
valueFrom:
secretKeyRef:
name: db-secrets
key: url
command: ["npm", "run", "migrate"]
- name: seed-data
image: myapp-seeder:latest
command: ["python", "seed.py"]
containers:
- name: app
image: myapp:latest
ports:
- containerPort: 8080
Applying the Pod Manifest and Getting Pod Status
To create the Pod using the above manifest, save it to a file (e.g., nginx-init-pod.yaml) and run:
kubectl apply -f nginx-init-pod.yaml
To check the status of the Pod:
kubectl get pod nginx-with-init
This will show the current status of the Pod, including whether the init container has completed and the main container is running.
Volumes in Kubernetes
Kubernetes Volumes provide a way for containers in a Pod to access shared storage. Volumes solve the problem of data persistence and sharing between containers, as the filesystem inside a container is ephemeral and lost when the container restarts.
VolumeMounts
A volumeMount is a specification within a container definition that tells Kubernetes where to mount a volume inside the container’s filesystem. Each container in a Pod can mount one or more volumes at different paths.
Volume Types
Kubernetes supports several types of volumes, each designed for different use cases. Some of the most common volume types include:
emptyDir
Temporary storage created for a Pod, deleted when the Pod is removed. Useful for scratch space or sharing files between containers in a Pod.
volumes:
- name: cache
emptyDir:
sizeLimit: 1Gi
medium: Memory # Use RAM for faster access
hostPath
Mounts a file or directory from the host node’s filesystem into the Pod. Useful for accessing host resources, logs, or tools. Type of file or directory on the host. Options include:
DirectoryOrCreate: Creates a directory if it does not exist.Directory: Must already exist and be a directory.FileOrCreate: Creates a file if it does not exist.File: Must already exist and be a file.Socket,CharDevice,BlockDevice: For mounting special device files.
volumes:
- name: host-logs
hostPath:
path: /var/log/myapp
type: DirectoryOrCreate
configMap
A configMap volume provides configuration data to Pods as files or environment variables. This is useful for separating configuration from application code and for dynamically updating configuration without rebuilding images.
volumes:
- name: config
configMap:
name: app-config
items:
- key: config.yaml
path: config.yaml
mode: 0644
secret
A secret volume is used to pass sensitive information, such as passwords, OAuth tokens, or ssh keys, to Pods. Secrets are stored in base64-encoded form and mounted as files or exposed as environment variables.
volumes:
- name: secrets
secret:
secretName: app-secrets
defaultMode: 0400
items:
- key: tls.crt
path: tls/cert.pem
- key: tls.key
path: tls/key.pem
persistentVolumeClaim (PVC)
A persistentVolumeClaim (PVC) volume connects a Pod to a PersistentVolume (PV) for durable, cluster-managed storage. PVCs allow Pods to request and use storage resources abstracted from the underlying storage implementation (local disk, NFS, cloud storage, etc.).
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: app-storage
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 10Gi
storageClassName: fast-ssd
---
apiVersion: v1
kind: Pod
metadata:
name: app-with-pvc
spec:
containers:
- name: app
image: myapp:latest
volumeMounts:
- name: persistent-storage
mountPath: /data
volumes:
- name: persistent-storage
persistentVolumeClaim:
claimName: app-storage
nfs
Network File System volume for sharing data across multiple Pods.
volumes:
- name: shared-data
nfs:
server: nfs-server.example.com
path: /exports/data
readOnly: false
projected
Combines multiple volume sources into a single directory.
volumes:
- name: all-in-one
projected:
sources:
- configMap:
name: app-config
- secret:
name: app-secrets
- serviceAccountToken:
path: token
expirationSeconds: 3600
Example: Pod with emptyDir and hostPath Volumes
apiVersion: v1
kind: Pod
metadata:
name: volume-demo
spec:
containers:
- name: app
image: busybox
command: ["sh", "-c", "echo Hello > /data/message && sleep 3600"]
volumeMounts:
- name: cache-volume
mountPath: /data
- name: host-logs
mountPath: /host-logs
volumes:
- name: cache-volume
emptyDir: {}
- name: host-logs
hostPath:
path: /var/log
type: Directory
In this example:
cache-volumeusesemptyDirfor temporary storage shared within the Pod.host-logsmounts the host’s/var/logdirectory into the Pod.
Kubernetes Design Patterns
1. Sidecar Pattern
A helper container runs alongside the main application container to enhance or extend its functionality.
Use Cases: Logging, monitoring, proxying, data synchronization
apiVersion: v1
kind: Pod
metadata:
name: sidecar-pattern
spec:
containers:
- name: main-app
image: nginx:1.21
ports:
- containerPort: 80
volumeMounts:
- name: logs
mountPath: /var/log/nginx
- name: log-aggregator
image: fluent/fluentd:latest
volumeMounts:
- name: logs
mountPath: /var/log/nginx
readOnly: true
env:
- name: FLUENT_ELASTICSEARCH_HOST
value: "elasticsearch.logging"
volumes:
- name: logs
emptyDir: {}
2. Ambassador Pattern
A proxy container that simplifies access to external services, handling connection logic, retries, and circuit breaking.
Use Cases: Database connection pooling, API gateway, service mesh
apiVersion: v1
kind: Pod
metadata:
name: ambassador-pattern
spec:
containers:
- name: app
image: myapp:latest
env:
- name: DATABASE_HOST
value: "localhost" # Connects to ambassador
- name: DATABASE_PORT
value: "5432"
- name: postgres-ambassador
image: envoyproxy/envoy:v1.24
ports:
- containerPort: 5432
volumeMounts:
- name: envoy-config
mountPath: /etc/envoy
volumes:
- name: envoy-config
configMap:
name: envoy-proxy-config
3. Adapter Pattern
Transforms the output or interface of a container to match a standard format.
Use Cases: Metrics standardization, log format conversion, protocol translation
apiVersion: v1
kind: Pod
metadata:
name: adapter-pattern
spec:
containers:
- name: legacy-app
image: legacy-app:1.0
ports:
- containerPort: 8080
volumeMounts:
- name: metrics
mountPath: /var/metrics
- name: prometheus-adapter
image: prom/prometheus-adapter:latest
ports:
- containerPort: 9090
volumeMounts:
- name: metrics
mountPath: /var/metrics
readOnly: true
volumes:
- name: metrics
emptyDir: {}
4. Init Container Pattern
Performs initialization tasks before the main container starts.
Use Cases: Database migrations, dependency checks, configuration setup
apiVersion: apps/v1
kind: Deployment
metadata:
name: init-pattern
spec:
replicas: 3
selector:
matchLabels:
app: myapp
template:
metadata:
labels:
app: myapp
spec:
initContainers:
- name: wait-for-services
image: busybox:1.35
command:
- sh
- -c
- |
until nc -z database-service 5432 && nc -z redis-service 6379; do
echo "Waiting for services..."
sleep 2
done
- name: run-migrations
image: myapp-migrations:latest
env:
- name: DATABASE_URL
valueFrom:
secretKeyRef:
name: db-credentials
key: url
containers:
- name: app
image: myapp:latest
ports:
- containerPort: 8080
5. Multi-Container Pod Pattern
Multiple containers work together in a single Pod, sharing resources and lifecycle.
apiVersion: v1
kind: Pod
metadata:
name: multi-container
spec:
containers:
- name: web-server
image: nginx:1.21
ports:
- containerPort: 80
volumeMounts:
- name: shared-data
mountPath: /usr/share/nginx/html
- name: content-puller
image: appropriate/curl:latest
command:
- sh
- -c
- |
while true; do
curl -o /data/index.html https://api.example.com/content
sleep 300
done
volumeMounts:
- name: shared-data
mountPath: /data
volumes:
- name: shared-data
emptyDir: {}
6. Self-Aware Pattern
Pods that understand their Kubernetes context through the Downward API.
apiVersion: v1
kind: Pod
metadata:
name: self-aware
labels:
app: myapp
version: v1
spec:
containers:
- name: app
image: myapp:latest
env:
- name: POD_NAME
valueFrom:
fieldRef:
fieldPath: metadata.name
- name: POD_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
- name: POD_IP
valueFrom:
fieldRef:
fieldPath: status.podIP
- name: NODE_NAME
valueFrom:
fieldRef:
fieldPath: spec.nodeName
- name: SERVICE_ACCOUNT
valueFrom:
fieldRef:
fieldPath: spec.serviceAccountName
volumeMounts:
- name: podinfo
mountPath: /etc/podinfo
volumes:
- name: podinfo
downwardAPI:
items:
- path: "labels"
fieldRef:
fieldPath: metadata.labels
- path: "annotations"
fieldRef:
fieldPath: metadata.annotations
7. Controller Pattern
Custom controllers watch for changes and reconcile desired state.
Use Cases: Operators, custom resource management
apiVersion: v1
kind: ServiceAccount
metadata:
name: custom-controller
namespace: default
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: custom-controller-role
rules:
- apiGroups: [""]
resources: ["pods", "services"]
verbs: ["get", "list", "watch", "create", "update", "delete"]
- apiGroups: ["apps"]
resources: ["deployments"]
verbs: ["get", "list", "watch", "create", "update", "delete"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: custom-controller-binding
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: custom-controller-role
subjects:
- kind: ServiceAccount
name: custom-controller
namespace: default
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: custom-controller
spec:
replicas: 1
selector:
matchLabels:
app: custom-controller
template:
metadata:
labels:
app: custom-controller
spec:
serviceAccountName: custom-controller
containers:
- name: controller
image: custom-controller:latest
Storage Patterns
1. Local Storage Pattern
For applications requiring high-performance local storage.
apiVersion: v1
kind: PersistentVolume
metadata:
name: local-pv
spec:
capacity:
storage: 100Gi
volumeMode: Filesystem
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
storageClassName: local-storage
local:
path: /mnt/disks/ssd1
nodeAffinity:
required:
nodeSelectorTerms:
- matchExpressions:
- key: kubernetes.io/hostname
operator: In
values:
- worker-node-1
2. Shared Storage Pattern
For applications requiring shared access across multiple Pods.
apiVersion: v1
kind: PersistentVolume
metadata:
name: nfs-pv
spec:
capacity:
storage: 500Gi
volumeMode: Filesystem
accessModes:
- ReadWriteMany
persistentVolumeReclaimPolicy: Retain
storageClassName: nfs
nfs:
server: nfs-server.example.com
path: /exports/shared
mountOptions:
- hard
- nfsvers=4.1
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: shared-storage
spec:
accessModes:
- ReadWriteMany
storageClassName: nfs
resources:
requests:
storage: 100Gi
3. Dynamic Provisioning Pattern
Automatically provision storage when needed.
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: fast-ssd
provisioner: kubernetes.io/aws-ebs
parameters:
type: gp3
iops: "3000"
throughput: "125"
encrypted: "true"
allowVolumeExpansion: true
volumeBindingMode: WaitForFirstConsumer
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: dynamic-storage
spec:
accessModes:
- ReadWriteOnce
storageClassName: fast-ssd
resources:
requests:
storage: 50Gi
4. Backup and Snapshot Pattern
apiVersion: snapshot.storage.k8s.io/v1
kind: VolumeSnapshot
metadata:
name: db-snapshot
spec:
volumeSnapshotClassName: csi-snapclass
source:
persistentVolumeClaimName: database-pvc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: restored-db
spec:
dataSource:
name: db-snapshot
kind: VolumeSnapshot
apiGroup: snapshot.storage.k8s.io
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 100Gi
Best Practices
Resource Management
apiVersion: v1
kind: Pod
metadata:
name: resource-best-practices
spec:
containers:
- name: app
image: myapp:latest
resources:
requests:
memory: "256Mi"
cpu: "500m"
limits:
memory: "512Mi"
cpu: "1000m"
# Resource quotas at namespace level
---
apiVersion: v1
kind: ResourceQuota
metadata:
name: compute-quota
namespace: production
spec:
hard:
requests.cpu: "100"
requests.memory: "200Gi"
limits.cpu: "200"
limits.memory: "400Gi"
persistentvolumeclaims: "50"
---
apiVersion: v1
kind: LimitRange
metadata:
name: resource-limits
namespace: production
spec:
limits:
- max:
memory: "2Gi"
cpu: "2"
min:
memory: "128Mi"
cpu: "100m"
default:
memory: "512Mi"
cpu: "500m"
defaultRequest:
memory: "256Mi"
cpu: "250m"
type: Container
Health Checks
apiVersion: v1
kind: Pod
metadata:
name: health-checks
spec:
containers:
- name: app
image: myapp:latest
ports:
- containerPort: 8080
# Liveness probe - restart if fails
livenessProbe:
httpGet:
path: /healthz
port: 8080
httpHeaders:
- name: X-Health-Check
value: liveness
initialDelaySeconds: 30
periodSeconds: 10
timeoutSeconds: 5
successThreshold: 1
failureThreshold: 3
# Readiness probe - remove from service if fails
readinessProbe:
httpGet:
path: /ready
port: 8080
initialDelaySeconds: 10
periodSeconds: 5
timeoutSeconds: 3
successThreshold: 1
failureThreshold: 3
# Startup probe - protects slow-starting containers
startupProbe:
httpGet:
path: /startup
port: 8080
initialDelaySeconds: 0
periodSeconds: 10
timeoutSeconds: 3
successThreshold: 1
failureThreshold: 30
Security Best Practices
apiVersion: v1
kind: Pod
metadata:
name: secure-pod
spec:
securityContext:
runAsNonRoot: true
runAsUser: 1000
fsGroup: 2000
seccompProfile:
type: RuntimeDefault
containers:
- name: app
image: myapp:latest
securityContext:
allowPrivilegeEscalation: false
readOnlyRootFilesystem: true
runAsNonRoot: true
runAsUser: 1000
capabilities:
drop:
- ALL
add:
- NET_BIND_SERVICE
volumeMounts:
- name: tmp
mountPath: /tmp
- name: cache
mountPath: /app/cache
volumes:
- name: tmp
emptyDir: {}
- name: cache
emptyDir: {}
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: app-service-account
automountServiceAccountToken: false
---
